Mini HD DVB-T2 Home H.264 Set Top Box with USB support PVR

Mini HD DVB-T2 Home H.264 Set Top Box with USB support PVR


Selling Points:


*Fully comply with DVB-T/T2 and H.264, MPEG-4, MPEG-2 Standard

*USB 2.0 for PVR

*Powerful and highly effective 7-day EPG function

*Multi-language

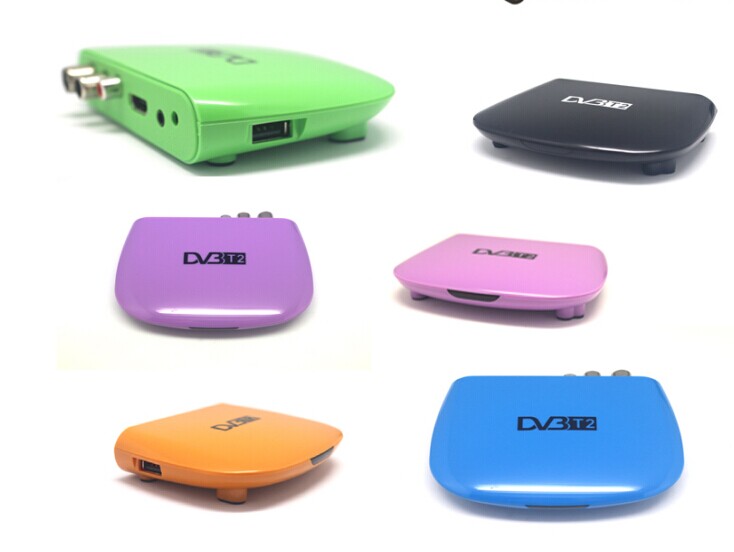

*Five color for your choice,fashion & colorful







Mini HD DVB-T2 Home H.264 Set Top Box with USB support PVR
Sortware Features:

Fully comply with DVB-T/T2 and H.264, MPEG-4, MPEG-2 Standard

The maximum speed of the traffic flow of at least 50 Mbit / sec

Support 3D interface

Sleep Timer

Support teletext/subtitle/muti-language

Powerful and highly effective 7-day EPG function

AUTO, 16:9 Pillar Box, 16:9 Pan G Scan, 4:3 Letter Box, 4:3 Pan G Scan, 4:3 Full, 16:9 Wide Screen

USB 2.0 for PVR,TIMESHIFT,software upgrade and media files playback

Video output resolution: 480i/576i/480p/576p/720p/1080i/1080P
Mini_HD_ DVB-T2_Home_H
Mini HD DVB-T2 Home H.264 Set Top Box with USB support PVR
Specifications:

Hardware:
CPU:MSTAR-MSD7802(128 pin) MIPS 34Kf@600MHz
Memory:32X16Mbit  DDR2 Frequency1066
Flash:32M bytes
Demodulator Type:MSB1236C Chip Set
TUNER:Rafael R836

Front Panel:USB 2.0 Embedded One Host,
                     4-digit LED display on front panel
                     red LED Standby,green  LED Lock
                     Panel KEY, POWER, CH+ ,CH-

Rear Panel:Tuner RF input connector:IEC-162-2( Female)
                    Tuner RF Loop through connector:IEC-162-2( Male)
                    HDMI V1.3/V1.4
                    RCA  CVBS AL AR Connector  x1
                    Ypbpr RCAx1
                    Coaxial x1
                    Power  AC100~240V  50Hz/60Hz

Demodulation:
Terrisal Receiver Standard:DVB-T2/T(EN_302755 V1.3.1/EN 300744)
Input RF Frequency:48~866MHZ
Bandwidth:6MHz,7MHz,8MHz
Constellation:QPSK 16-QAM 64-QAM and 256-QAM
FEC:1/2, 3/5,2/3, 3/4,4/5,5/6
Guard Interval: 1/128  1/32  1/16  19/256  1/8  19/128  1/4
FFT Mode:2K/ 8K/32K
Support:Support  Single and multiple PLPS
Input level: -83 - -5dBm

 Decoder:
Video Decoder:Compliant with: MPEG-4 part10/MPEG-2 ISO/IEC 13818
                            MPEG-4 Simple/Main/Advanced Profile@LEVEL3(10Mbps)
                            MPEG-2 Main Profile# Main Level(15Mbps)
                            H.264 MP#L3(10Mbps).H.264 HP L4.1(25Mbps)
Audio Decoder:MPEG-1, MPEG-2 (Layer I/II), MP3, AC-3 (Dolby Digital), AAC-LC, WMA
                           E-AC-3 (Dolby Digital Plus) decoding  HE-AAC 5.1 multi-chhannel decoding

Powerful Multimedia Features:
MediaCodec:avi. mpg, .dat, .vob, .div, .mov, .mkv, .jpeg, .ts etc
Audio Codec: WMA,MP3,AAC (.wma,.mp3,m4a)
Photo Codec:JPEG, BMP, PNG

License:
Optional  DTS, Dolby Digital, Dolby Digital Plus, RM/RMVB, Divx  License

Accessories:
gift box
AV cable optional
HDMI cable optional

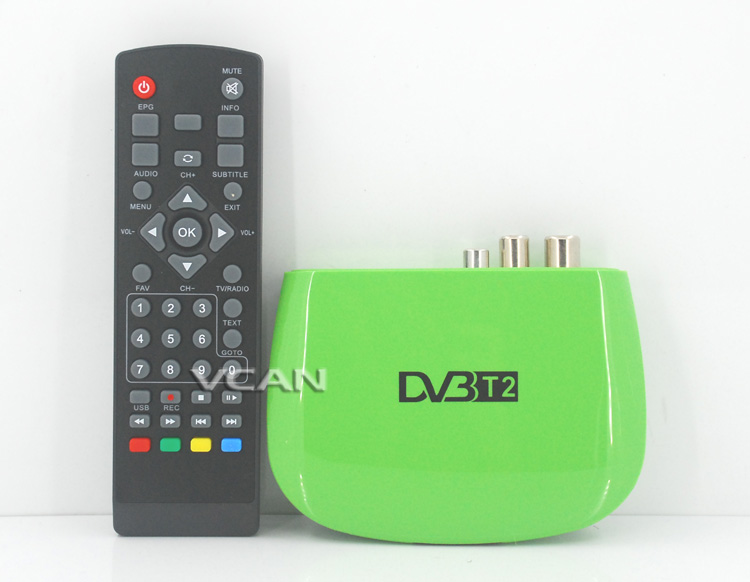

IR remote control
User Manual

Mini HD DVB-T2 Home H.264 Set Top Box with USB support PVR
Paking details:

Product Name:
DVB-T2M8
Size per carton:69*41*40(cm)
Single weight:0.7 (kgs)
Quantity per carton:50 (pcs)
Weight per carton:26.4(kgs)
Single size:
18*13*8(cm)
