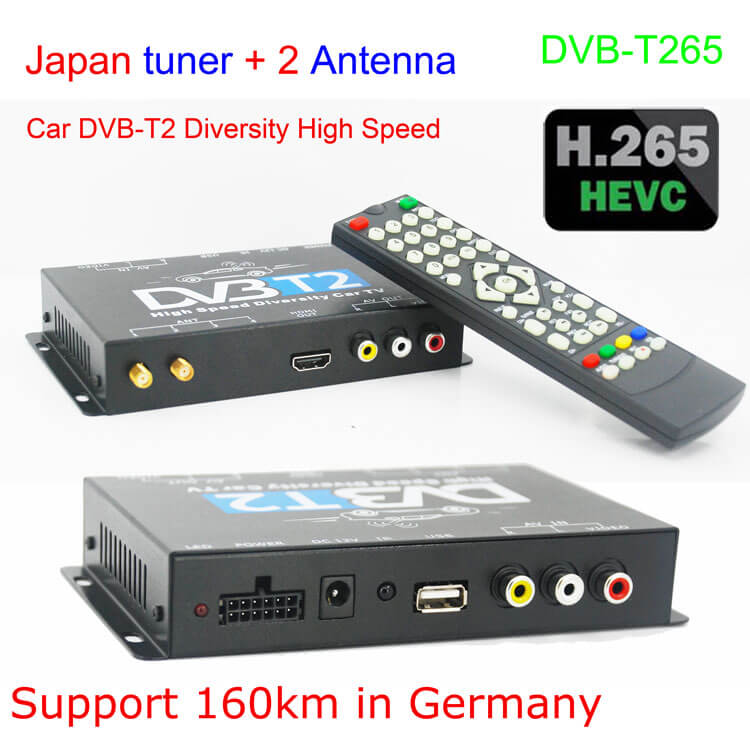

DVB-T265 Germany DVB-T2 H.265 HEVC 2017 New Model
DVB-T2 HD receiver for High-definition pictures and two DVB-T2 high-performance antenna with controllable amplifier.
If you need any information, please contact us:
Selling Points:
Car DVB-T2 H265 TV receiver box;
Japan tuner, designed for car
Support DVB-T H.264 / DVB-T2 H.265 both;
Two active antenna 25db;
German DVB-T2 standard (H.265)
For Germany Italy Czech Slovakia
Car dvb-t2 TV tuner diversity digital receiver set top box + Antenna, support H.265 HEVC decoder
 |  |  |  |
DVB-T265 Car DVB-T2 tv receiver USB HDTV 2 Antenna Japan Tuners High Speed for Germany Italy Czech Slovakia
Terrestrial HD receiver for the DVB-T (H.264) and DVB-T2 (H.265 / HEVC) reception
Features:
1. Now Support DVB-T / DVB-T2 + High Speed.
(Now DVB-T, future updated DVB-T2, once buy, save money.)
2. Support Multi PLP, say goodbye to missing channel
3. Support H.264/AVC for DVB-T, H.265/HEVC for DVB-T2., MPEG2~MPEG4 HD Video Decode;
4. Available to upgrade the firmware via USB slot;
5. USB Recorder, PVR, multimedia play, support HDD;
6. Auto searching and updating bit rate information;
7. Storage for 2000pcs channels;
8. Memory function after power off;
9. Support OSD TELETEXT;
10. Multi Language Support: English, Germany, Italy, Russian,Thai, Spanish etc.
11. EPG program guide and PIG(Picture in Graphics )Function;
12. 6MHz, 7MHz, 8MHz Band-wide;
13. HD output (One route);
14. 2x Video output, Stereo Audio-R, Audio-L output;
15. Support IR output and extended remote sensor receiver;
16. Google DVB-T265 to get perfect technology support and update software.
17. Support AUX AV input.
18. Tuner support power for active amplified antenna (VCAN0961 http://vcan.cc/product/VCAN0961-Car-DVB-T-DVB-T2-Digital-TV-antenna-aerial-built-in-signal-enlarger-booster.html)
19. 10~32V widely power supply, special designed for car or bus.
20. Smart module design, even built-in your dvd / gps play.
21. Touch screen operation is optional. (Need debug and ODM)
22. Power DC jack, one cigarette lighter to connect easily
HEVC(H.265)Decoder
－Supports Main Profile,High Tier @Level
4.1 up to 1080p@60fps
－Supports 8-/10-bit color depth
－Supports max.bitrate of 50 Mbps
Supports error concealment feature for
erroneous video streams
Supports frame rate conversion between
different encoding and display frame rates
1. Very important is that the module really provides full H.265 Multi-PLP decoding capabilities.Only this is going to work in Germany since the old standard with H.264 will be discontinued in Germany from March 2017.
DVB-T265 support H265, also support H264, that means you can get TV now and future.
2. I need same DVBT2 with CI slot for pay tv please.
DVB-T265 has no CI slot now. We will add CI slot if market requirement increase at future.
3. It working in Slovakia? Now it is DVB-T and DVB-T2 together.
DVB-T265 support DVB-T (H.264) and DVB-T2 (H.265), Some customer told us that TV program has picture without sound, maybe it is reason that your tv box no support audio (H.265) decoder.
German standard HEVC/H.265-Codec
Specification:
1. Input frequency: VHF 177.5MHz - 226.5MHz UHF 474MHz - 858MHz
2. Modulate: QPSK/16 - QAM/256-QAM
3. Decode standard: MPEG4,MP@ML,MP@HL,H.264/AVC
4. Audio decode standard: MPEG-1, and-2,layer and 2, MPEG-4, HE-AAC
5. Two ways CVBS RCA + One HD output:
6. Power Supply: DC 12V~26V 5W
7. Connecting Terminal:
Active amplifier antenna input jack (3.3V supply), Car power input jack , R/L Audio CVBS Video output jack,
External remote control IR cord, USB upgrade socket, HD High-definition output jack.
8. Applicable Power Supply: Car storage battery (12V~ 24V)
9. Outer dimension: 125mm x 85mm x 26mm
10. Application Temperature: -5 ~40 degree
11. Storage Temperature: -20~60 degree
Technology Data:
| TV Standard | Fully SD/HD Tuner DVB-T/T2, SD/HD MPEG2 and MPEG4 AVC H.264 |
| Video Resolution | Full HD tuner DVB-T2,support up to 1080P |
| Video System | Automatic PAL/NTSC conversion |
| Video Ratio | Aspect ratio 16:9 and 4:3 |
| Channels Number | 1000 channels memory |
| OSD Language | OSD language: English, Thailand, Russia, Spainish more please visit www.dvb-t2.cn |
| EPG | Small windows screen picture with EPG graphic menu,7-Day EPG function |
| Channel Search | Auto search & Manual search function |
| Software upgrade | Software upgrade via USB |
| Teletext | Support teletext/ subtitle/audio language selection,VBI Teletext,Teletext/ Bit Map subtitle |
| Save Channel | Automatic save for last channel |
| LCN | Support Logic Channel Number(LCN) |
| 1.Main Chip Sets | |
| Flash Memory | 32MB Serial Flash |
| DDR2 Memory | 512MB |
| 2.Tuner | |
| Input Frequency | VHF: 174~230MHz,UHF: 470~862MHz |
| RF input Level | -20~-83dBm |
| RF Bandwidth | 6MHz-7MHZ and 8MHZ |
| Modulation | QPSK,16QAM,64QAM,256QAM |
| 3.USB Decode | |
| DVR supporting | Stereo/MONO/Left/Right |
| Media Supporting | USB2.0 Port, playback the media in USB flash disk or USB HDD |
| USB2.0 HOST | DVR with USB HDD, Time shifting with USB HDD |
| 4.Multimedia | |
| music | MP3,WMA |
| photo | JPEG,BMP,PNG |
| Video | |
| 5.Video Decode | |
| Decode Format |
MPEG-2 MP@HL, MPEG-4 SP, DIVX1 3.11(Optional), 4.X, 6.X,FLV Format,
|
| H.264MP@HL, VC-1,RM&RMVB(Optional) | |
| Output Format | 1080p,1080i,720p,576p,576i,480p,480i |
| Aspect Ratio | 4:3/16:9/Letterbox/ selectable |
| Output Port | CVBS and HD Out |
| 6.Audio Decode | |
| Decode Format | MPEG-1,MPEG-2 (Layer I/II),MP3, AC-3(Optional),E-AC-3(Optional),AAC-LC,HE-AAC 5.1 |
| Audio output | RCAX2(L/R) + HD Out (Audio) |
| 7.AV Output | |
| Video Bandwidth | 5.5MHz(-3dB) |
| Video Impedance | 75Ω |
| Video Voltage Level | 1.0 Vp-p |
| Audio Freq. Range | 20~20KHz |
| Guard internal | 1/4,19/128,1/8,19/256,1/16,1/32,1/128 |
| Pilot pattern | PP1-PP7 |
| Power Supply | DC(10V-26V) |
| Hardware interface | DC input 12V, 2 Antenna input, USB, HD out, AUX AV in, CVBS AV out, IR sensor, Power Indicator |
| Audio format | ISO/IEC14496-30,AAC,AAC+ |
| FFT | 1K,2K,4K,8K,16K,32K |
| Power | 2 W |
| Video resolution | 576i,576p,720p,1080i and 1080p |
| Audio Impedance | 600Ω |
| Audio Voltage Level | 2V rms(5.6Vp-p) |
Accessory:
1 X Car DVB-T2 receiver
2 X 25DB car amplifier digital DVB-T2 Antenna
1 X power / ir / av cable
1 X Remote Control Unit
1 X Extended IR Cable
1 X Audio Video output cable
1 X Users' manual
